Textile spreader: Extended and cut on canvases

Máquinas extendedoras de telas y tejidos, géneros de punto, no tejidos (TST, TNT, Non-woven), fibra de vidrio, corte y apilado de los mismos. Aptas para rollos de hasta Ø1.800mm y longitudes de extendido variables de hasta 15 metros. Especialmente indicadas para empresas fabricantes de textiles para el hogar, protección y cuidado del colchón.

Applications of extenders

Bed linen, white linen or hospitality clothing (sheets or white, pillows, pillowcases, duvets, duvets, bedspreads or blankets, blankets or blankets…)
Bedding materials (mattresses, mattress covers, mattress protectors…)
Decoration (Upholstery, sofa covers, curtains, blackouts…)
Fashion (clothing and casual wear, footwear, interlinings…)
Bath Linen (bathmats, shower curtains, towels…)
Waterproof mattress protection.

Applications with technical, aeronautical and automotive fabrics (wind turbine blades, fuselages, airbags, insulation, moulds…)
Disposable hospital clothes
Banners, awnings, tents and parasols.
Digital printing.
Table Linen (tablecloths, napkins, rubber tablecloths…)
Kitchen linen (aprons, bibs, bread bags, kitchen towels…)
Cleaning material (cloths, mops, bags…)

Models of extenders and cutters

Automatic machine for extending, cutting and stacking high productivity for all fabrics, textiles and elastic materials. Designed to work simultaneously with several rolls. With working widths of up to 3,200mm and extended lengths of up to 15 meters.

EXTENDOR Mod. DM-GDB

LARGE DIAMETER

LIDEM offers several versions of this system:
GDB models incorporate one or more unwinding groups that allow work from rolls or coils of diameters up to 1,800mm, preventing roll changes and allowing continuous work and higher production by eliminating downtime. This machine is prepared to be able to work also from external feeding systems such as:

Request information

DELICATE TEXTILES

It is especially suitable for fabrics. The system is user-friendly and adaptable to any fabric, guaranteeing high cutting precision.

Request information

VERSATILITY

It is a very high-production machine designed to work with fibreglass and extend up to 15 meters. LIDEM offers several versions of this textile extender machine.

Request information

EXTENDOR Mod. GDT4

AUTOMATIC THREADING

Model with an initial capacity of 4 rolls that work simultaneously or independently. It has an automatic threading system. This model is designed with a powerful tractor system for external feeding with auxiliary means.

Request information

EXTENDOR Mod. DC

Unwinding-extender machine

This machine is specially designed to work with textiles from medium-diameter coils, utilising a cradle of rollers.

Request information

Characteristics of Extenders

The automatic version of the roll-cutting machine is the most innovative, and with the most developed technology of LIDEM.

High productivity extending, cutting and stacking machines for all textiles and fabrics, knitted, nonwoven, fibreglass, carbon fibre … etc.

Products used in manufacturing bedding, table linen, kitchen clothes, bathing clothes, upholstery, curtains, awnings, tents and technical applications. The EXTENDER machine is an extending, cutting and stacking table that can be manufactured in different widths and lengths. The specially designed unwinding module avoids product STRESS and DEFORMATIONS, which allows us to work with elastic or deformable fabrics, knitted textiles and delicate materials.

The GDT4 models feature a motorised unwinding unit for four rolls (with the possibility of increasing the capacity from up to 10 roll holder-feeders).

The DCM models incorporate an unwinding unit consisting of motorised roller cradles synchronised with the extension system, which allows simultaneous and stress-free operation with several rolls.

As with all other models, all machine parameters are controlled from the central console via the built-in touch screen (number of cuts, cutting length, cuts per bundle, number of bundles, paving carriage speed, tension, blade travel speed, lowering speed of the lift table, etc.). The lifting table allows stacking of up to 260mm thick. This table comprises two independent work areas: a cutting area where the machine carries out the extension and another, the handling area, where the operator can handle the material at the same time as the extension. The PVC belt transports material between zones.

The B models are the ideal extending and cutting machines for small productions and more straightforward jobs.

Accessories

LIDEM offers various accessories for extension, cutting and stacking machines, which allow the machine to be customised and adapted to the customer’s needs. LIDEM offers multiple accessories such as:

Adapted to the needs of the client:

Textile alignersare used to align fabrics before extension and cutting.
Feedersof several additional rolls to increase the machine’s capacity by increasing rolls working simultaneously.
Spreadersof textiles in Zigzag to work with fabrics folded in zigzag
Spreadersof textiles to double or “spine” that allow to work with materials bent and folded to double.

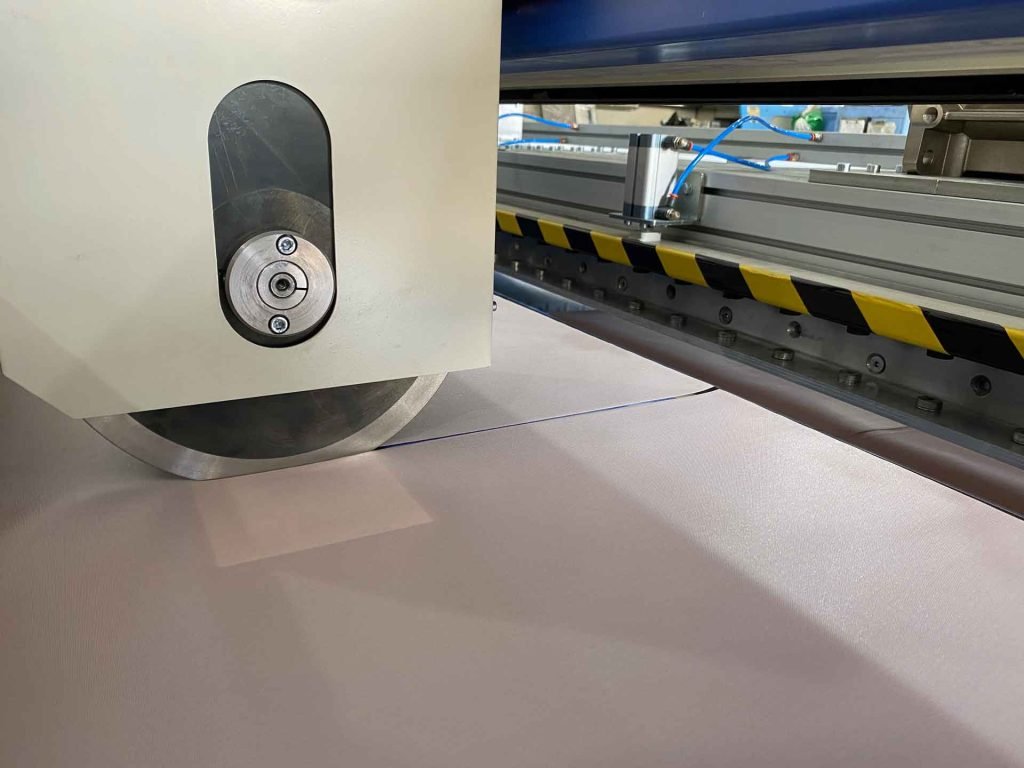

Edge cutters are used to cut the edges of the fabric before the extended and stacking phase.
Longitudinal cutters that allow one or more longitudinal cuts to be made in the fabric as it extends.
Aspirator of edgesfor the extraction of the cut edges.
Colour identification that allows identical lines of a particular colour to be cut at an exact distance from them.
Marking unit that allows cross-sectional markings with a pencil to a programmed measurement.

Transca Rewinder

Ready to work on:

TRANSCA

Compact and mobile machine for rewinding and filtering textile rolls, nonwoven and plastic materials. It is manufactured in various widths and for rolls of different diameters.

Request information

Stress control

The machine’s primary purpose is to wind rolls to a certain number of metres from a primary roll.

The LIDEM rewinder allows our customers to electronically control the tension of the laminated material from a control board.

The rewinding model includes a digital programmable meter counter that stops the machine when it reaches the programmed measurement.

In addition, the machine has been equipped with a manual cutter to make the winding process faster and more accurate.

Double textiles

The material obtained is used by companies that sell fabrics, nonwoven and other materials in the form of a roll.

The video model is capable of winding rolls up to 400 mm. However, LIDEM has the right technology to manufacture rewinders that adapt to the needs of each customer.
